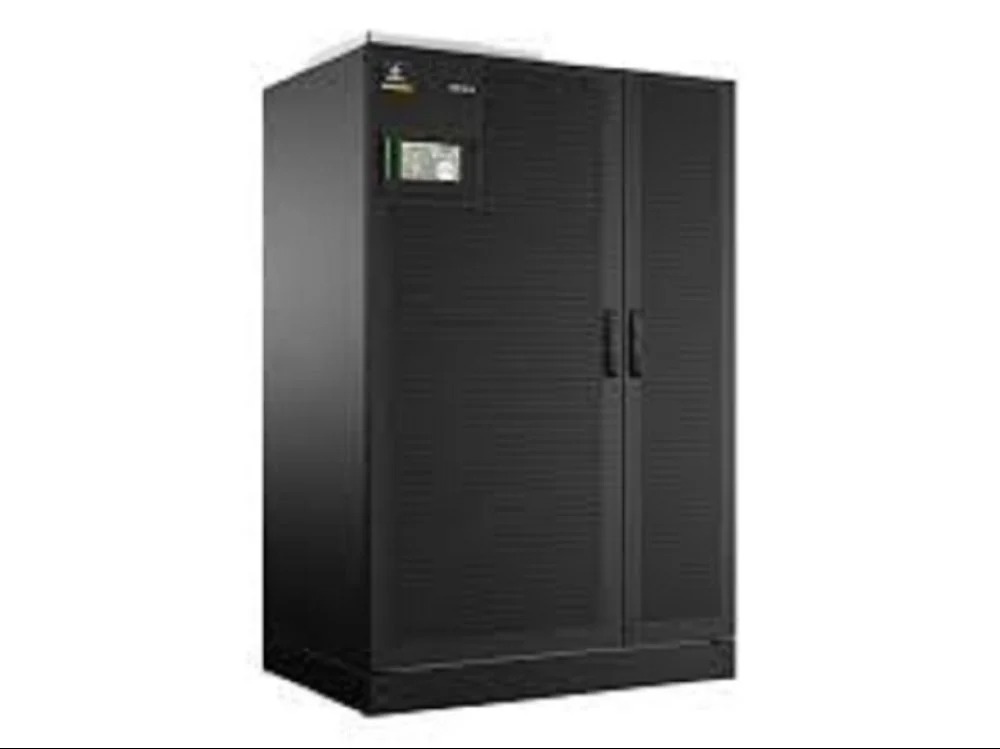

The Vertiv 500 kVA UPS is a heavy‐duty, three‑phase, online double‑conversion power protection system engineered for large scale and mission‑critical environments — data centres, industrial plants, hospitals, and telecommunications hubs. It typically operates at around unity power factor, delivering full 500 kVA / 500 kW (or very close) capacity, with very low total harmonic distortion (THD) on output (often < 3 % on linear loads and acceptable limits under nonlinear loads). These units employ high efficiency, transformer‑free topologies with advanced IGBT or SVPWM inverter stages, achieving around 95‑97 % efficiency under full load and sometimes even higher in partial‑load or eco/dynamic online modes.
Input voltage is three‑phase (around 380‑415 V) with a wide tolerance band, and they offer a range of protection features — static bypass, overload capability (e.g. 125‑150 % for limited durations), powerful surge handling, and built‑in diagnostics.
The unit’s design focuses on modularity and serviceability: front panel access or front/top servicing of power cores, redundant cooling, paralleling options (for capacity increase or N+1 redundancy), compatibility with modern battery solutions including lithium or advanced VRLA, temperature‑compensated battery charging, and advanced control via DSP or digital control platforms with remote monitoring.
Physically, a 500 kVA UPS is large and heavy (many hundreds of kilograms), with sizable external battery banks. Installation involves careful consideration for floor strength, cooling load, cable entry, and maintenance space. Overall, it delivers both high reliability and availability with relatively low total cost of ownership given its efficiency and scalability.
