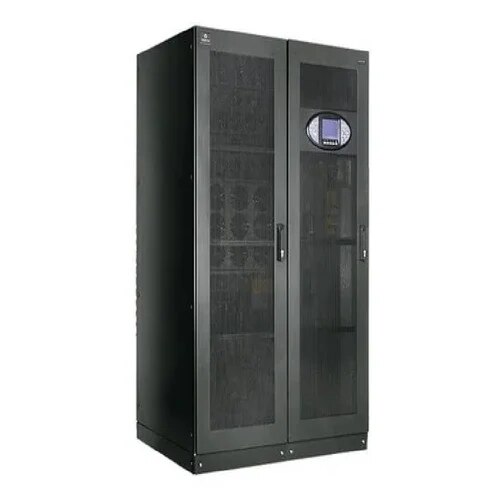

overview of the Vertiv 1000 kVA UPS, focusing on its features, specifications, and applications.
General Overview
- Type: Online UPS (Double-Conversion)
- Capacity: 1000 kVA (1 MVA)
- Form Factor: Typically floor-mounted, designed for large facilities.
Electrical Specifications
- Input Voltage: Usually 380V to 480V AC, three-phase
- Output Voltage: Configurable output, typically 380V to 480V AC
- Frequency: 50/60 Hz (auto-sensing)
- Output Power Factor: Typically around 0.9 to 1.0
Performance
- Efficiency: High efficiency, often exceeding 95%, with options for eco-mode to enhance energy savings.
- Transfer Time: Zero milliseconds due to the online architecture, ensuring uninterrupted power supply.
Battery and Runtime
- Battery Type: Commonly uses sealed lead-acid (SLA) or lithium-ion batteries.
- Battery Backup Time: Varies based on load; external battery cabinets can extend runtime.
- Recharge Time: Typically 4-8 hours to recharge from complete discharge.
Features
- User Interface: LCD display with real-time monitoring of operational status, battery health, load levels, and alarms.
- Communication Ports: SNMP, USB, and RS-232 for monitoring and remote management.
- Surge Protection: Built-in surge protection to safeguard connected equipment.
- Overload Protection: Automatic shutdown in case of overload conditions.
Physical Specifications
- Dimensions: Size varies by model; requires substantial floor space and proper ventilation.
- Weight: Generally heavy; ensure appropriate installation support.
Installation and Management
- Mounting Options: Designed for floor mounting; requires sufficient space and infrastructure.
- Management Software: Advanced software options for monitoring and managing UPS status remotely.
Applications
- Ideal for:
- Data centers
- Large IT infrastructures
- Industrial applications
- Telecommunications
- Healthcare facilities
Additional Features
- Modularity: Some models may offer modular designs for scalability and redundancy.
- Hot-Swap Capability: Allows battery replacement and maintenance without downtime.
- Parallel Operation: Supports parallel configurations for redundancy and capacity scaling.
Warranty and Support
- Warranty: Generally includes a limited warranty covering parts and labor, with options for extended service agreements.
- Support: Vertiv offers various support services, including installation, maintenance, and monitoring solutions.
Conclusion
The Vertiv 1000 kVA UPS is designed for mission-critical applications requiring high reliability and performance. It is well-suited for environments where power continuity is essential.
